Assignment: Flow Analysis

Now, try setting up a flow analysis on the elbow below.

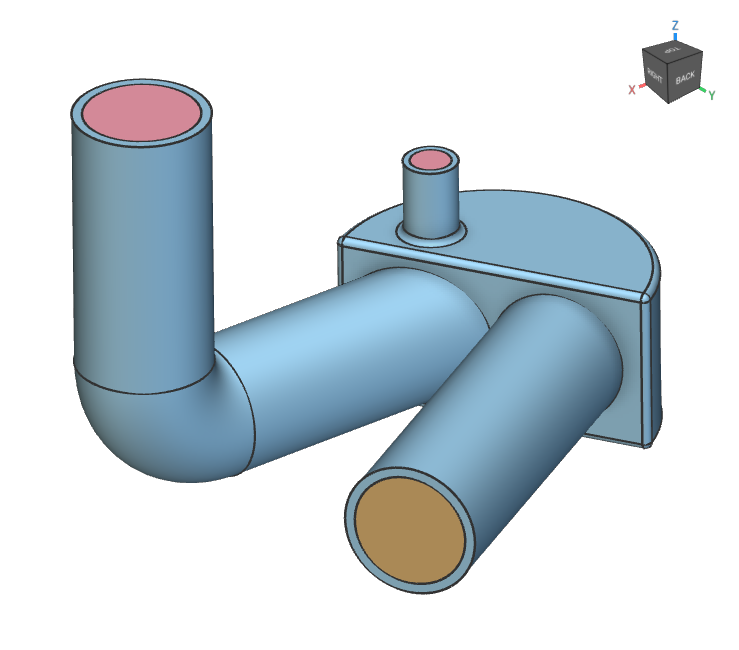

The (2) pink faces represent the inlets. At the larger inlet, define a fluid velocity 0, 0, -50000] mm/s. At the smaller inlet, assign a velocity of [0, 0, -6000] mm/s.

The yellow face represents the outlet. Here, assign a pressure of 101,325 Pa.

Download the starter file below to begin. In the next lesson, we will walk through the solution together.
