Lattice Utilities

You can use Lattice Utilities to modify lattices after creation. These blocks are in the Utilities dropdown of the Lattices tab in the Ribbon. Lattice Utilities blocks output a lattice type containing lattice properties.`

See the options below, and watch how to apply them in the next lesson.

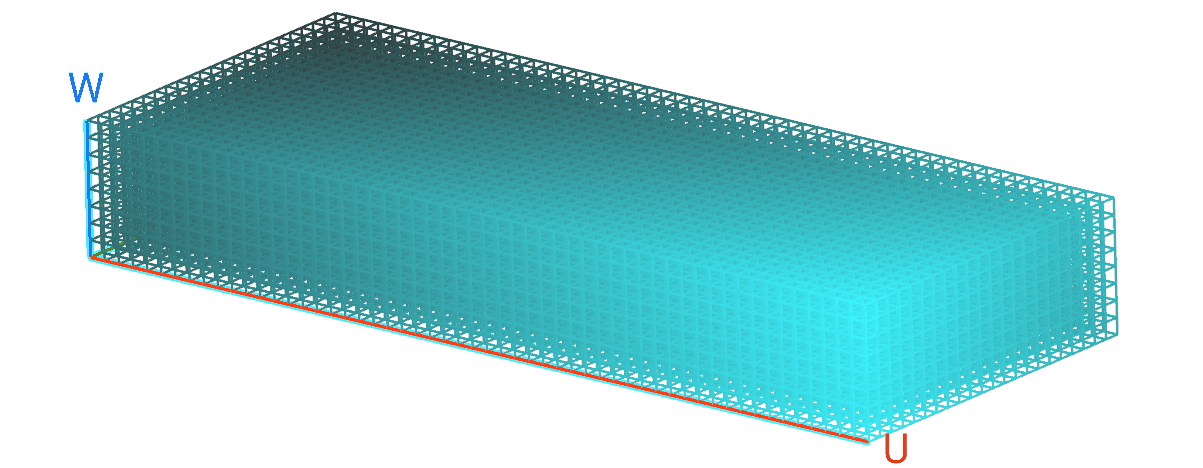

Trim Cell Map

Trim a cell map with an implicit body.

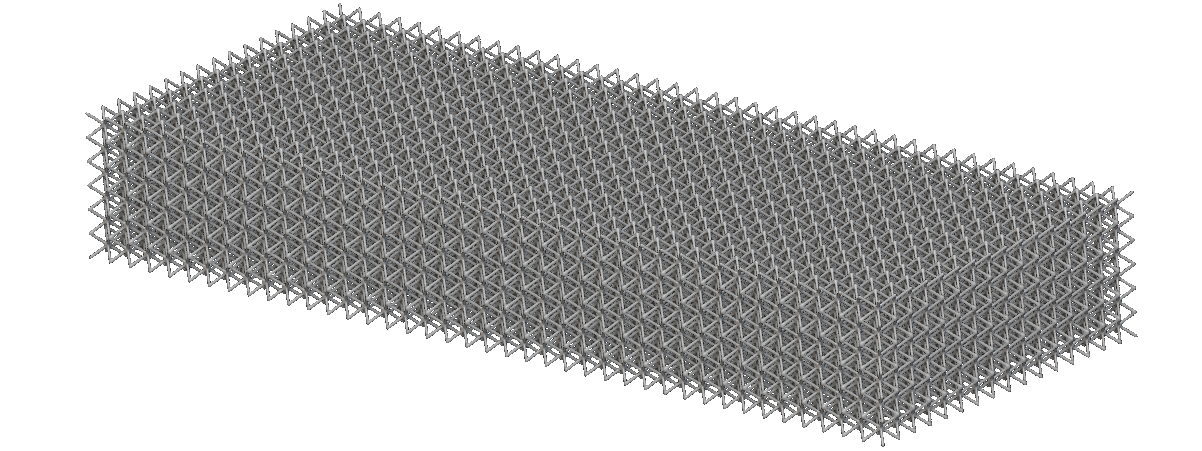

Trim Lattice

Trim a lattice with an implicit body.

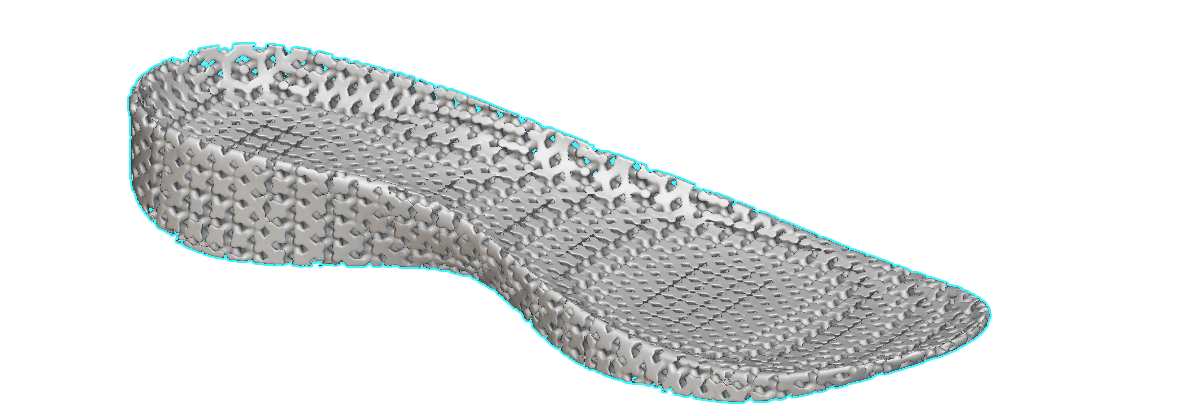

Modify Lattice Thickness

Adjust the thickness of a lattice.

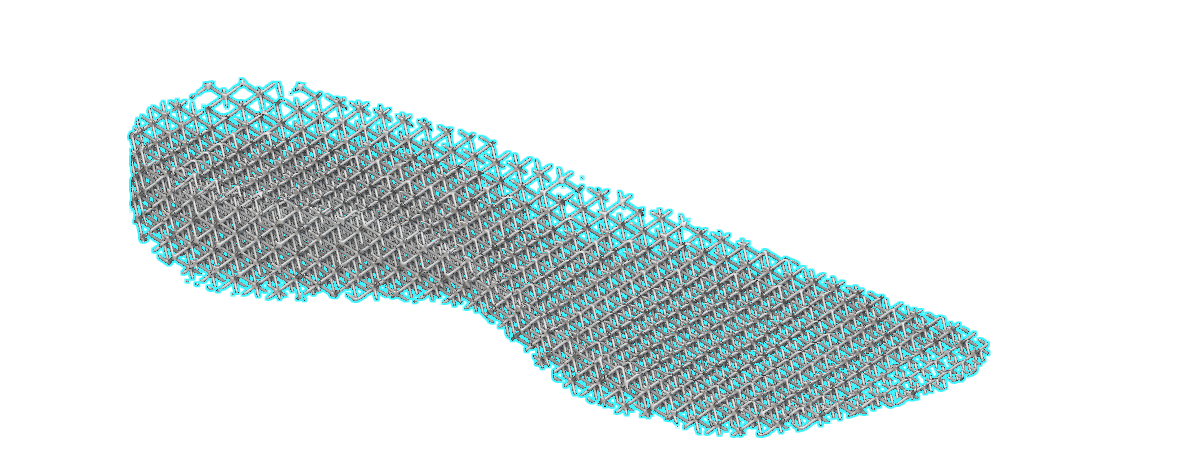

Merge Lattices

Merge a list of two or more lattices.

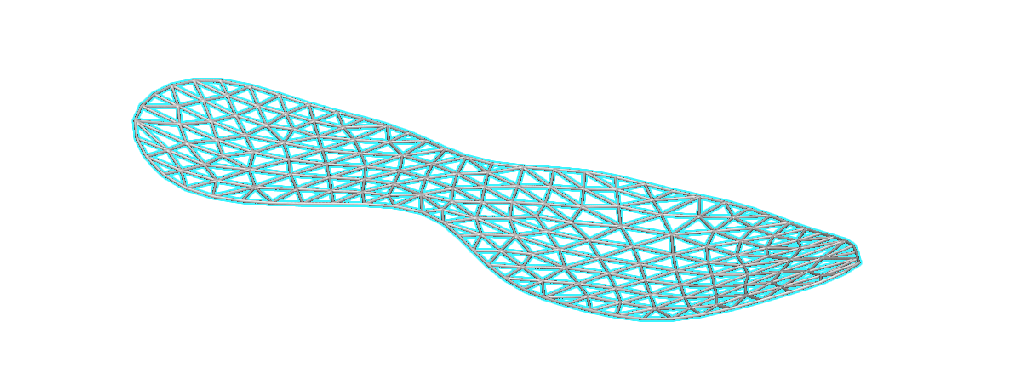

Extrude Lattice

Create directional ribs from the beams of a lattice.

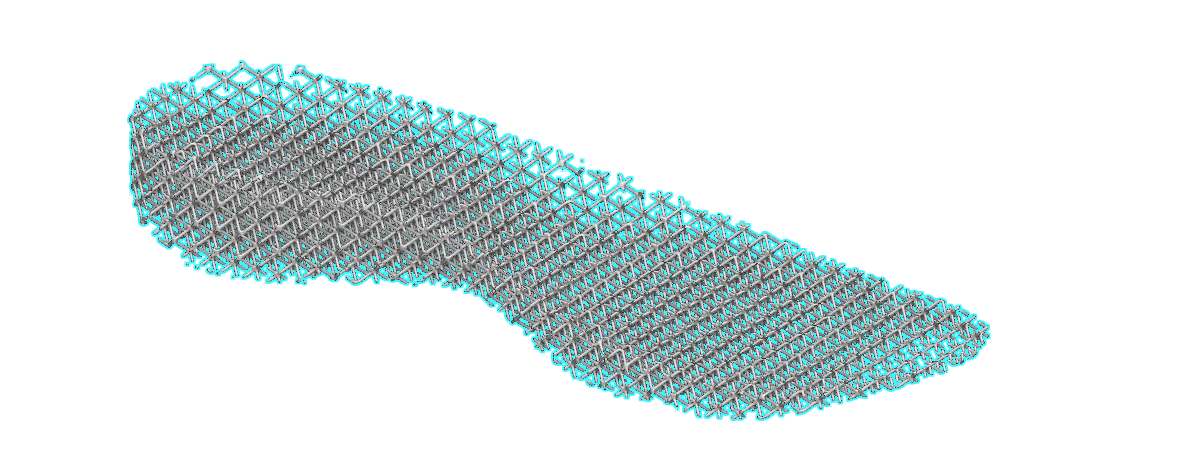

Extend Open Lattice Beams

Extend open beams within a lattice.

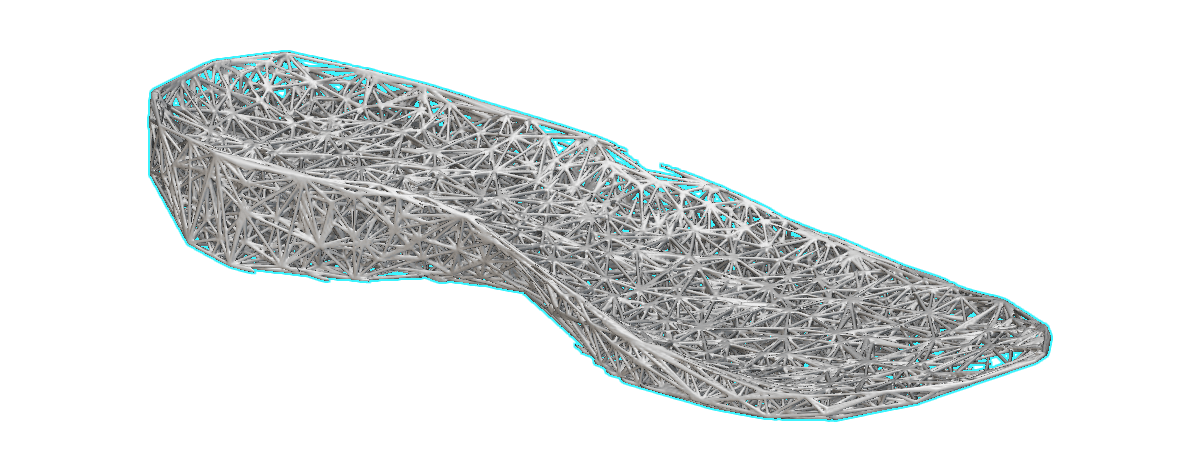

Collapse Vertices

Merge and collapse vertices of a lattice within a specified distance
threshold.
