Optional: Data Driven Design Test Problem

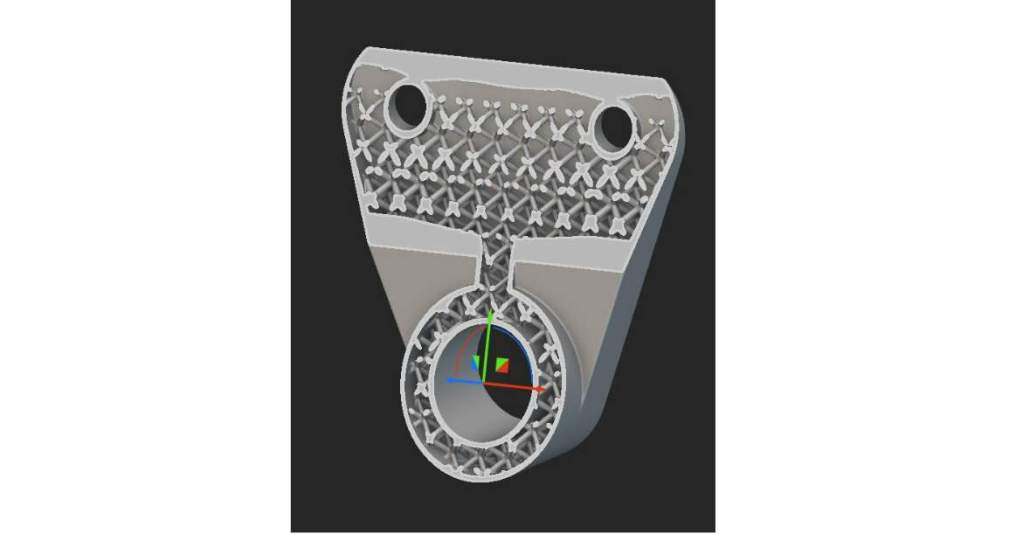

Using the starter file below, use the imported stress data to shell and lattice infill the bracket, reinforcing the areas with the greater stresses.

Use a BCC unit cell with an 8x8x8mm cell size, and transition the beam thickness between 1mm and 4mm.

Estimated Time to Complete: 20 minutes
