Periodic Lattice

In the Lattices tab, we have the Periodic Lattice block, which creates all of the periodic lattices in nTop. The block generates these lattices through Unit Cells and Cell Maps. Using this block, we can create a lattice with a custom implicit design, a TPMS structure, or a graph.

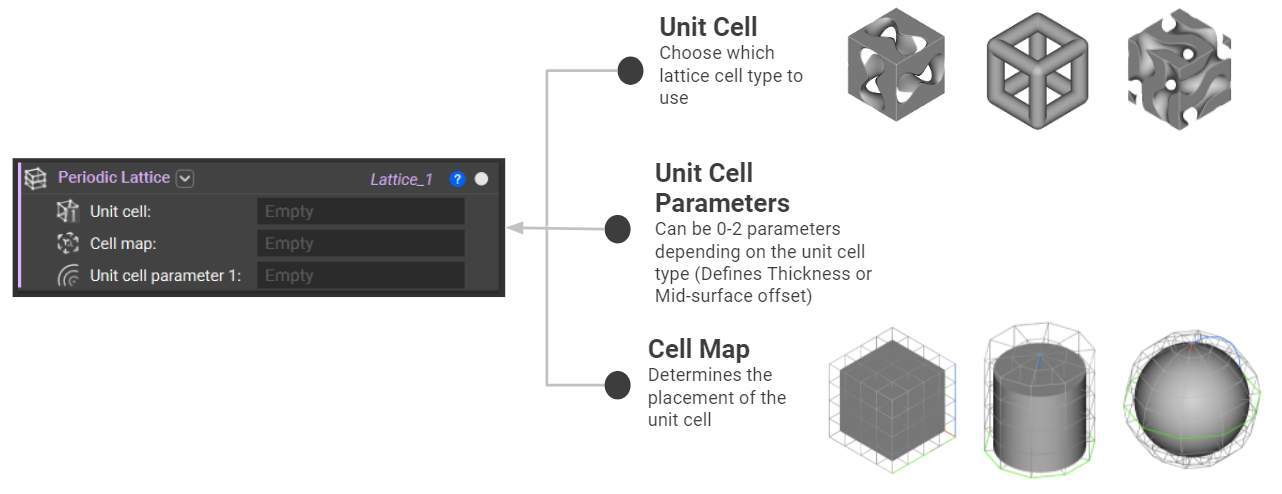

The Periodic Lattice block has three key inputs: Unit Cell, Cell Map, and Unit Cell Parameters. In the next few lessons, we will go into detail about these inputs and how to create a lattice using this block.
