Optional: Mesh Portions Test Problem

Now that you have learned ways to select portions of a mesh in nTop, feel free to try this optional problem with a review of the answer in the following lesson.

Given the final FE Volume Mesh from the previous optional test problem, create two boundaries containing faces as shown below.

First boundary: Select the outer face

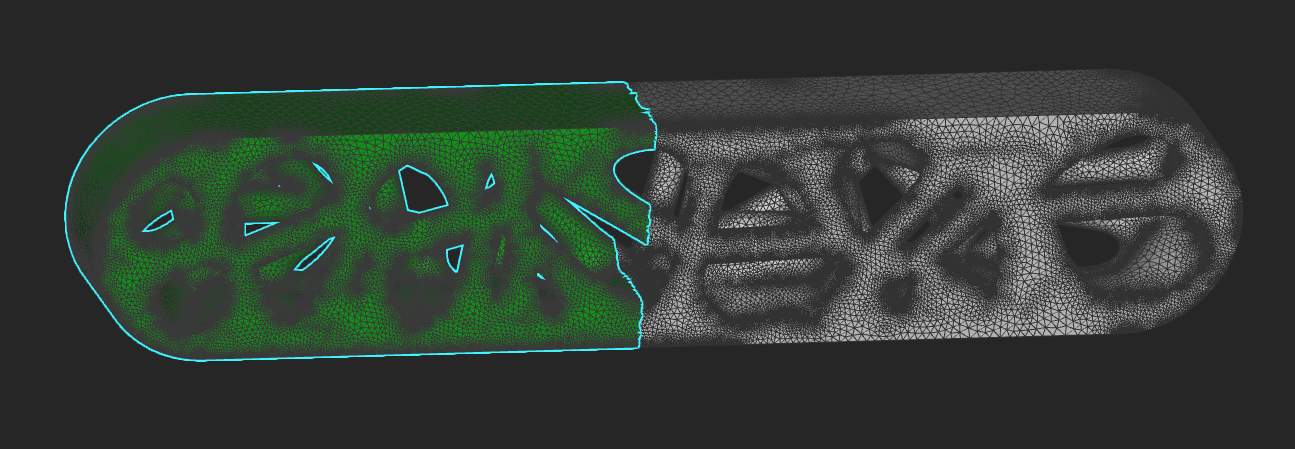

Second boundary: Select the left half of the part

Estimated Time to Complete: 15 minutes

102_23_Complete — Volume Mesh Test Problem.ntop

Report File Issue

This file was last updated in 5.12.2
