Creating Point Maps

Creating a Point Map from nTop Simulation Results

Note: Point Map is used only for visualization with a HUD, which lets you see the values by controlling parameters on the HUD. You can use the field to drive your design parameters, which will be discussed in the later lessons.

When you view an analysis’s properties in nTop, you can see that different results are available as scalar fields.

Add a Point Map block. We can see that it has two inputs: Points and Values.

We will use a combination of the Evaluate Field block and nodes to calculate the field values in the node values and then use them as input to the Point Map block.

For an example, let’s use the von misses stress property of the Static Analysis block.

Points: FE Volume Mesh > volume mesh > vertices

Evaluate Field: Scalar Field: Static Analysis > von misses stress

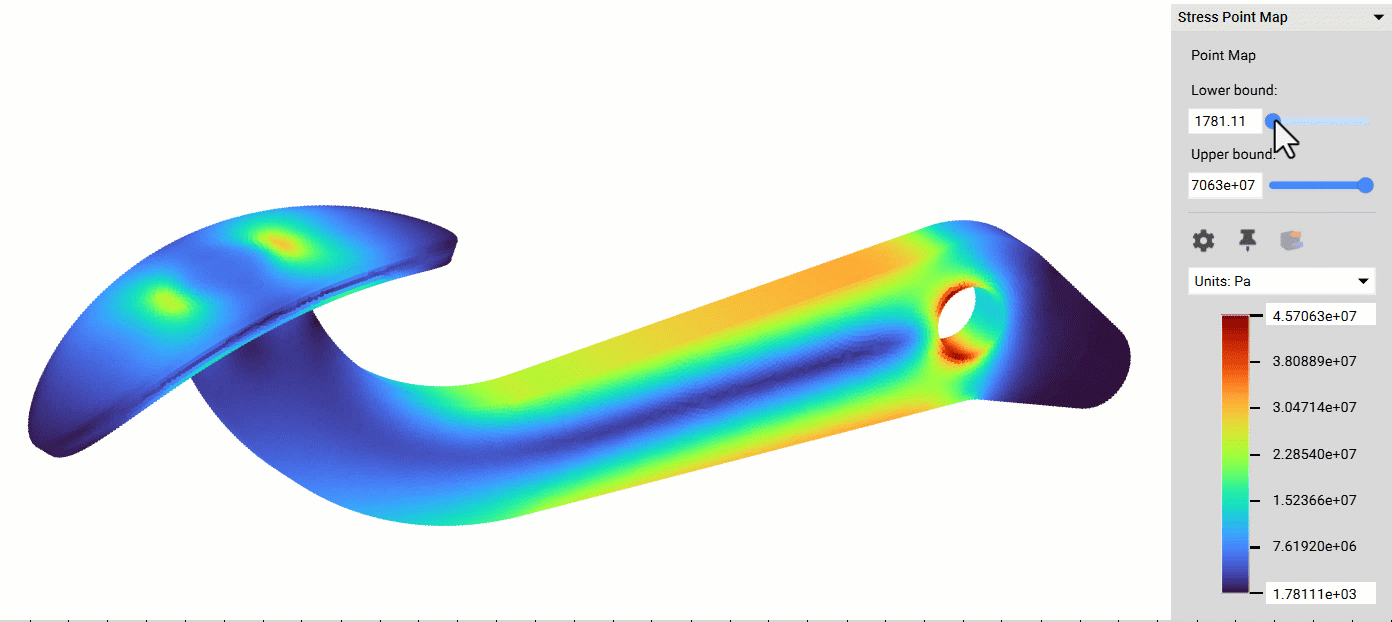

This generates a Point Map of the Von Mises stress. You can toggle the Lower and Upper Bounds of the Point Map when visible. The Point Map is the stepping stone to utilizing the Simulation results. It can be exported, filtered to show the max or min values, and used to create a Field for further design changes.
