Advanced Features: Contoured Standoffs Fixture
Add contoured standoff fixtures for any part or mesh you import.
To use the ‘Contoured Standoffs Fixture’, drag the imported Part or imported Mesh into the Part input of the Contoured Standoffs Fixture Block.
Contoured Standoff Fixture Inputs

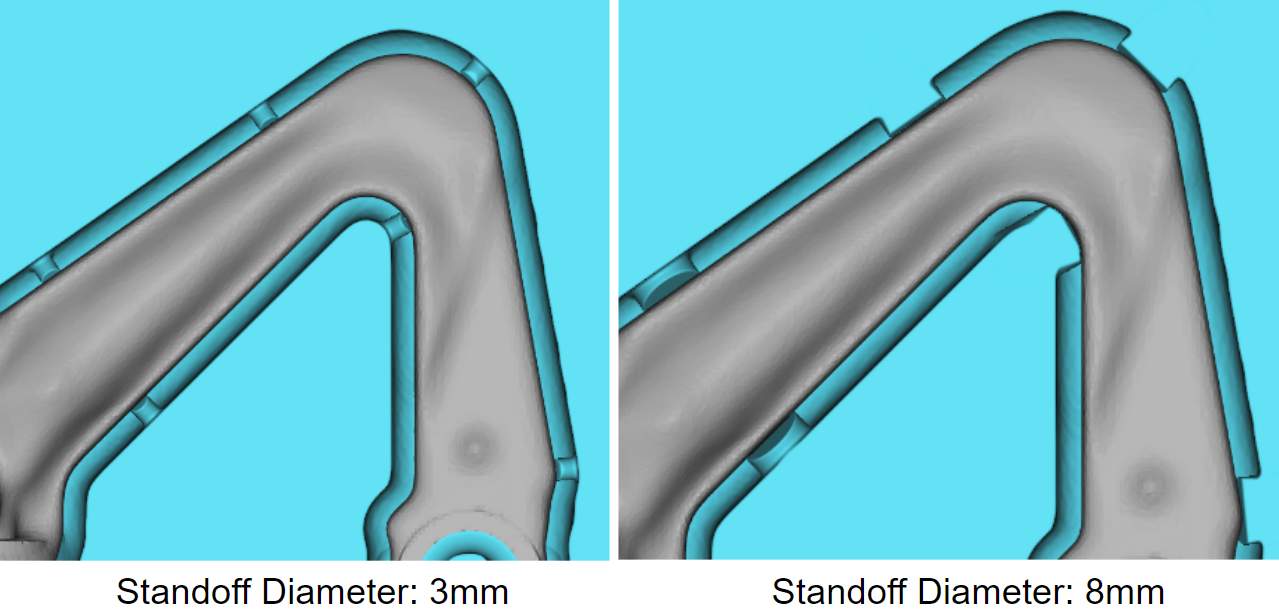

The diameter of the cylinder used to generate the standoff geometry.

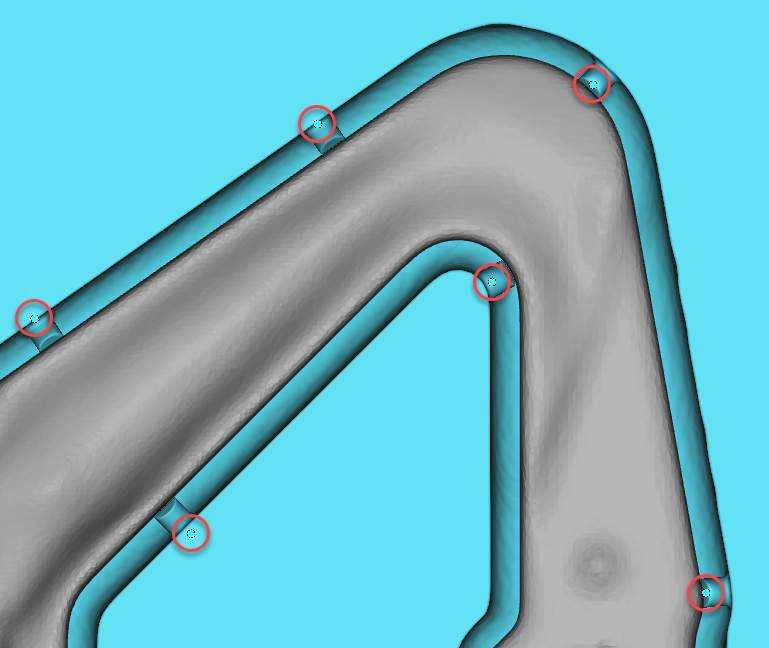

The enumerated list of points is used to generate standoffs.
The distance between the part and cavity.
A user-input distance that operates like a CAD chamfer & distance value.
