Optional Advanced Test Problem: Woven Patterns

Now that you have learned how about remapping in nTop, feel free to try this optional problem with a review of the answer in the following lesson.

Problem Statement: Apply remapping fields and Boolean operations to create a planar, cylindrical, and spherical woven pattern using the starting inputs in the Weaving with Fields Starter file below. To help with this creation, the starter file includes the equations needed for creating the wavy patterns of the columns with some descriptions.

Note: In order to create the woven pattern, you will need two sets of columns and rows.

Not sure where to start? If you would like to instead follow along with a video that walks through this process from scratch, you can watch our Intermediate Field Driven Design Training Video starting ~50minutes in.

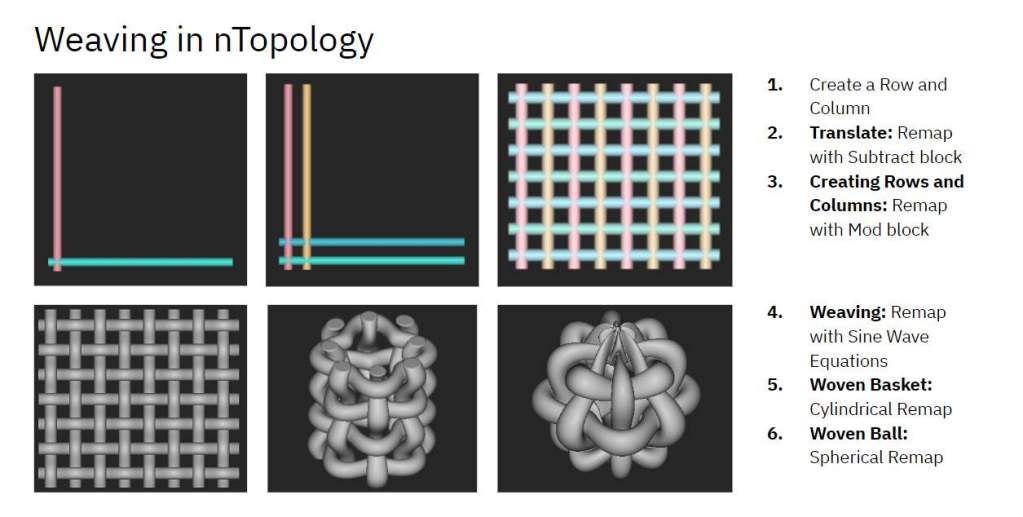

We recommend this process to get you started on the problem:

Estimated Time to Complete: 50 minutes

Example File:

This file was last updated in nTop 3.37.3
