Optional: Export Meshing Test Problem

Now that you have learned ways to export a mesh out of nTop, feel free to try this optional problem with a review of the answer in the following lesson.

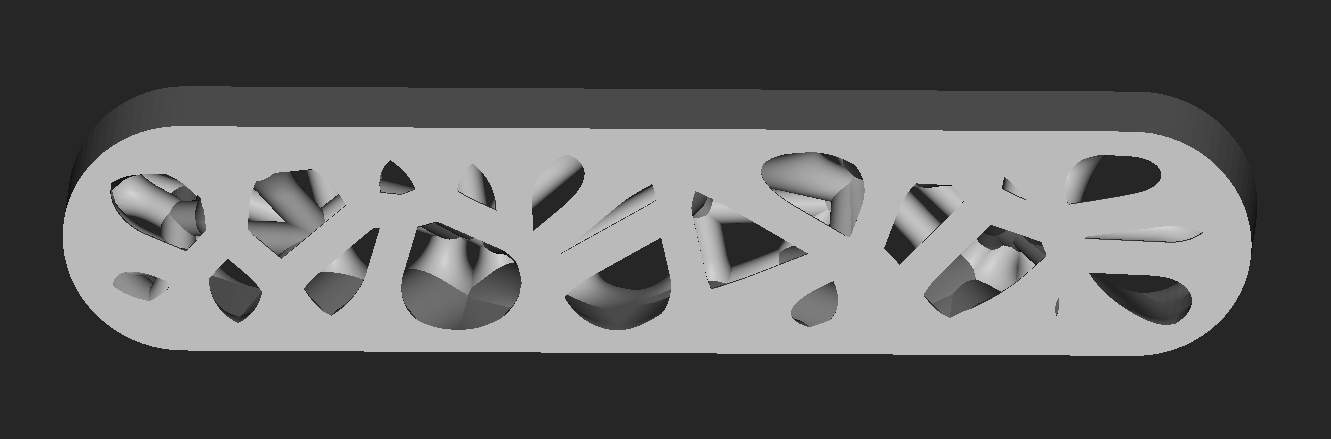

Given the variable “Final Body” in the starter file, export this implicit body as a 3MF with a file size smaller than 10,000kB. The final mesh should have a closed, edge manifold, and oriented mesh that is not self-intersecting. The mesh tolerance should be 0.1mm, and you do not need to check Sharpened.

Estimated Time to Complete: 25 minutes

Example File:

This file was last updated in nTop 5.12.2
